Type JK ：Compact type

• Regulate the amount lubricant applied to a tool’s cutting edge in exact quantities.
• Nozzles(Pumps) Quantity  is up to 2.
• Compact and Simple type with no box.
• Application: Cutting machine, Lathe, Milling machine and so on.

Specifications

Supply air	Remove dirt, oil content, and moisture
Flow rate	Over 60L/min (ANR) per one nozzle(Dia. 8mm air tube Required)
Connection	Rc1/4
Supply Air Pressure	0.4~0.7MPa
Discharge rate	0~170 mL/h per one nozzle
Hose length	Standard 3m (maximum 10m)
Supported Lubricant	Fuji BC genuine Lubricant
Lubricant Reservoir	300mL(Standard)/850mL/1900mL/4000mL
Nozzle type	Copper nozzle, Loc-Line nozzle with magnet base and so on
Pump Quantity	1~2
Lubricant Control	Pump stroke and activating pump time by frequency generator
Operating Temperature	+5~+50℃

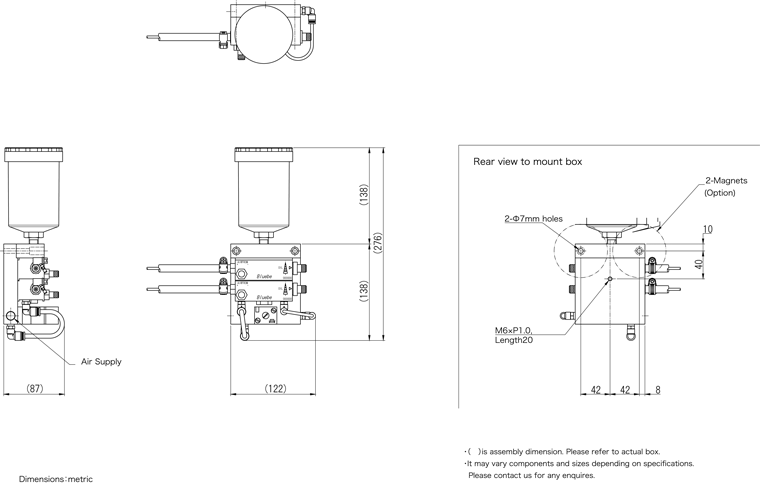

JK2　 Outline dimensional drawing

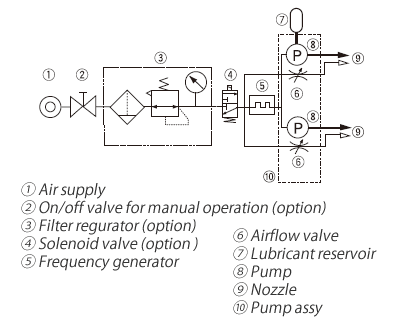

JK2　 Electlic system
