Type EB7VP (Lubricant supply available with operating / Retro-Fit)

• With internal pressure automatic control and fluid can be fed while operating.
• Continuous run is available by the separated 4,000ml reservoir.

Specifications

Supply air	Remove dirt, oil content, and moisture
Pressure	0.4 to 0.8 MPa
Flow rate	Maximum 350L/min (ANR)
Lubricant Control	Manual control by frequency generator
Inner Pressure Control	Automatic control by pressure switch
Lubricant	FUJI BC lubricant
Capacity	4000mL
Terminal Box	11 Poles terminal box (to connect machine switch board)
Dimension	335mm x 750mm x 186mm (W x H x L)
NET Weight	25kg
Discharge rate	EB7VP: 2~70mL/hour

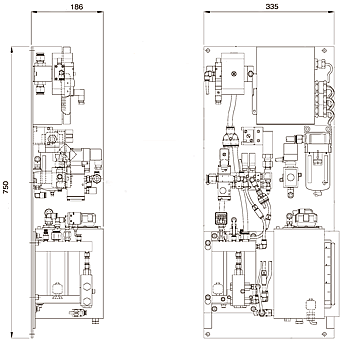

EB7VP Outline dimensional drawing
